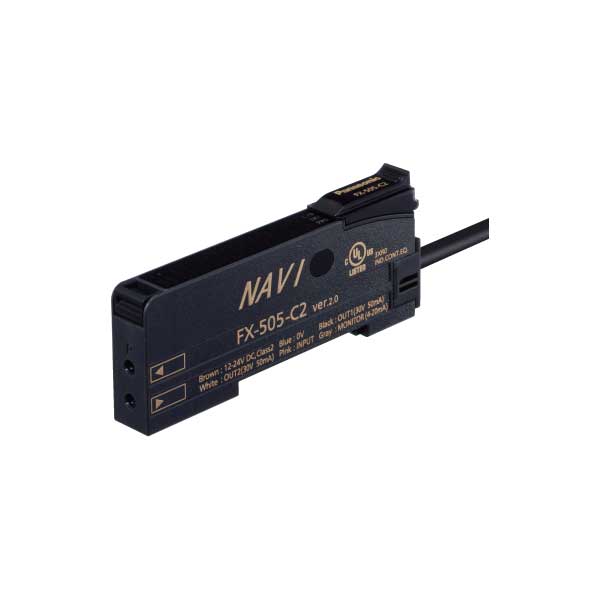

Item Specifications
| Series | FX-500 |
| Remove Discontinued | Currrent Model |
| Setting Type | PB Teaching |
| Setting Type Detail | PB Teach with fine adjust |
| Display Type | Digital LED Display |
| Display Detail | Dual 4-digit Red/Grn display,LED Status Indicators |
| Features | Best-In-Class FO amplifier with 2-digital/1-current analog outputs & external input for the ultimate fiber optic sensing performance. Ultra long sensing even with small diameter fibers. |
| Light Source | Red LED |
| Amplifier Type | Stand Alone |
| Output Type | PNP, Analog |
| Output Details | 2 each PNP, 4-20mA |
| Connection Type | Cable |
| Connection Details | 2 Meter Cable |
| Supply Voltage | DC |
| Voltage Details | 12 to 24VDC |
| Fastest Respose Time | 22µs |
| Time Delay Option | Multifunction |
| Counter Option | No |
| Remote Input Feature | Yes |
| Cross Talk Prevention | Up to 3 units (Main/Sub) |
| Protection Rating | IP40 |
| Includes | FX-MB1 (amplifier protection seal): 1 set |
| Item Weight | 0.18 lbs per EA |
