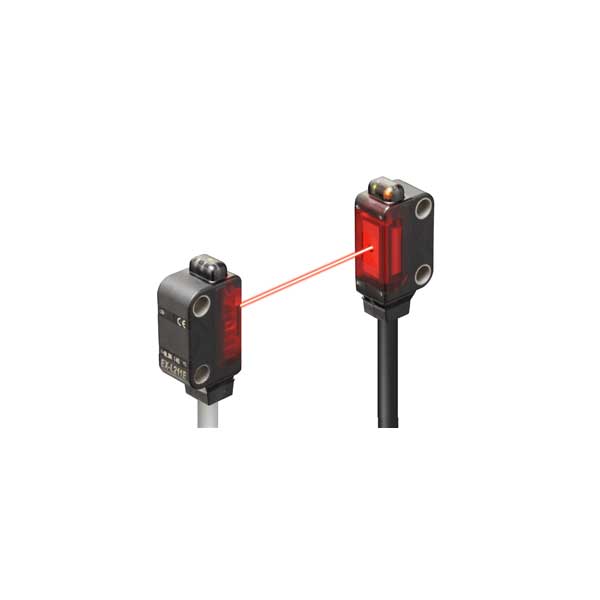

Cảm biến laser Panasonic EX-L211

Item Specifications

• Series
  EX-L200
• Sensing Mode
  Thrubeam
• Sensing Mode Features
  Opaque & Translucent Target Detection
• Sensor Body Type
  Ultra-Compact
• Sensor Body Feature
  Side Screw Mounting
• Sensor Type
  Self-contained
• Sensitivity Setting Type
  Potentiometer
• Display Type
  LED Indicator
• Sensor Features
  Ultra-compact and self-contained thrubeam laser with 0.01mm repeatability. Small receiver apeture provides min detectable object Ø2mm.
• Laser Beam Spot Size
  6mm x 4mm
• Laser Light Source Details
  Red Semiconductor laser – Class 1 FDA, 655nm
• Laser Output
  390 µW max
• Supply Voltage Details
  12 to 24 VDC
• Setting Distance
  1 meter
• Control Output
  NPN
• Output Details
  1 each NPN Output
• Output Operation Mode
  Light-On/Dark-On selectable
• Construction
  Polybutylene terephthalate enclosure, acylic front cover, glass lens
• Temperature Rating
  -10º to +55º C
• Protection Rating
  IP67
• Connection Type
  Cabled
• Connection Detail
  Cable 2m
• Item Weight
  0.20 lbs per EA
