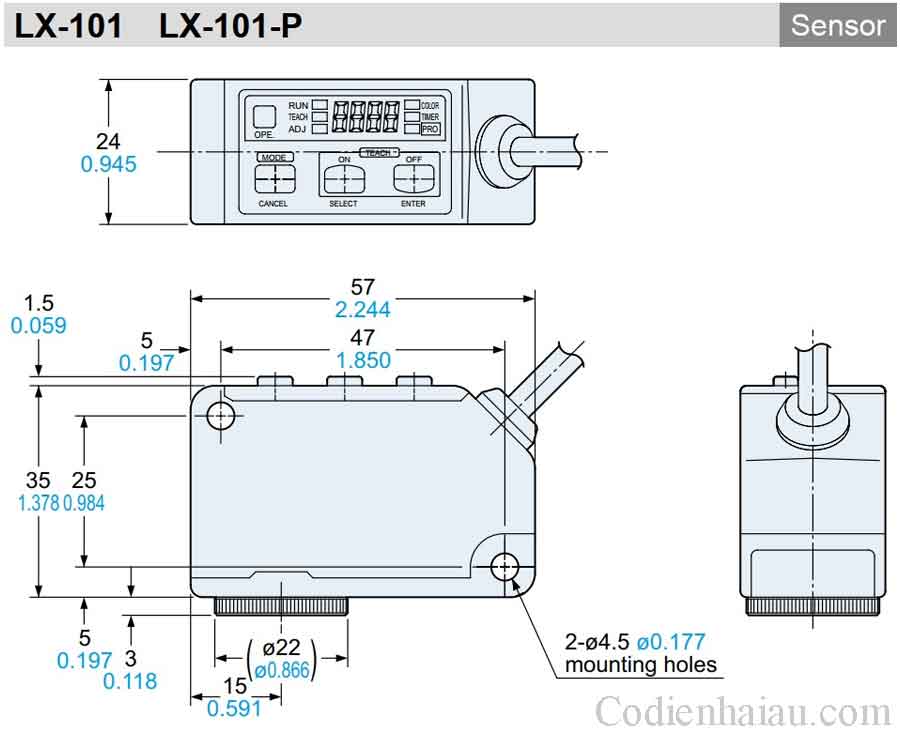

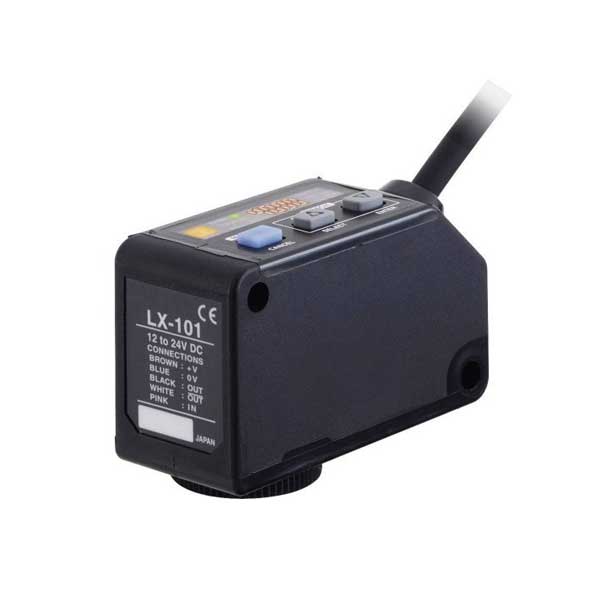

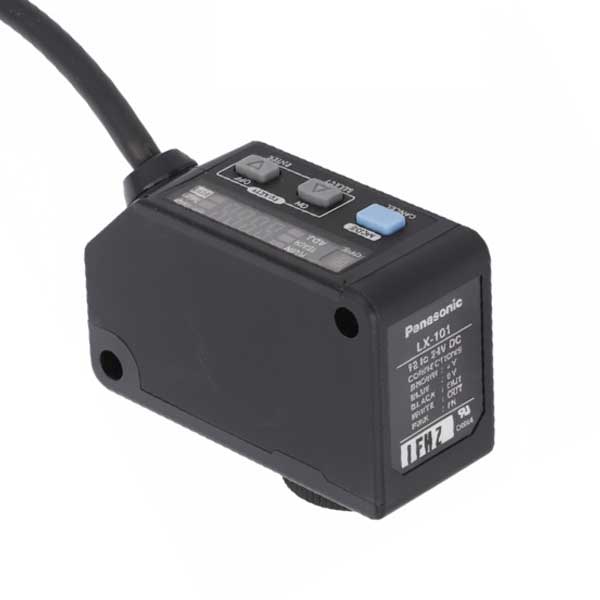

| Item | Specifications |
| Product Number | LX-101 |
| Part Number | LX-101 |
| Products Name | Digital Mark Sensor |
| Product details | Cable type |
| The price of the product | Please contact our office |
| Applicable regulations | EMC Directive, RoHS Directive |
| Sensing range | 10 ± 3 mm 0.394 ± 0.118 in |
| Spot size | 1 x 5 mm 0.039 x 0.197 in (at 10 mm 0.394 in setting distance) |
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Current consumption | Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage) |
| ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage) | |
| Output 1(OUT) | NPN open-collector transistor |
| – Maximum sink current: 50 mA | |
| – Applied voltage: 30 V DC or less (between output and 0 V) | |
| – Residual voltage: 1.5 V or less (at 50 mA sink current) | |
| Output 1:Short-circuit protection | Incorporated |
| Output 1:Output operation | Mark mode: Light-ON / Dark-ON (Auto-setting on teaching) |
| Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching) | |
| Output 2(OUT) | NPN open-collector transistor |
| – Maximum sink current: 50 mA | |
| – Applied voltage: 30 V DC or less (between output and 0 V) | |
| – Residual voltage: 1.5 V or less (at 50 mA sink current) | |
| Output 2:Short-circuit protection | Incorporated |
| Output 2:Output operation | Inverted operation of the output 1 |
| Response time | Mark mode: 45 micro s or less |
| Color mode: 150 micro s or less | |
| Teaching input | NPN non-contact input |
| – Signal condition: High… +5 V to +V, or open, Low… 0 to +2 V (source current: 0.5 mA or less) | |
| – Input impedance: 10 kOhm approx. | |
| Digital display | 4-digit red LED display |
| Sensitivity setting | Mark mode: 2-level teaching / Full-auto teaching |
| Color mode: 1-level teaching | |
| Fine sensitivity adjustment function | Incorporated |
| Timer function | Incorporated with variable ON-delay / OFF-delay timer, |
| switchable either effective or ineffective | |
| (Timer period: 1 to 500 ms, 9 levels variable) | |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), |
| Storage: -20 to +70 ℃ -4 to +158 ℉ | |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm double amplitude or maximum acceleration 196 m/s2 in X, Y, and Z direction for 2 hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directionsthree times each |
| Emitting element | Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil / 470 nm 0.019 mil) |
| Material | Enclosure: PBT |
| Display cover: Polycarbonate | |
| Operation buttons: Silicone rubber | |
| Lens: Glass | |
| Lens holder: Aluminum | |
| Cable | 0.34 mm2 5-core cabtyre cable, 2 m 6.562 ft long |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 120 g approx |
| Gross weight: 180 g approx | |
| Accessory | M4 (length 30 mm 1.181 in) screw with washers: 2 pcs. |
