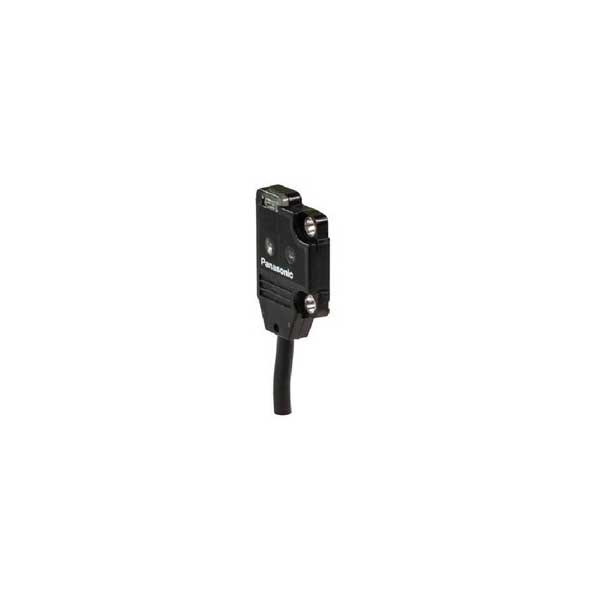

Cảm biến quang Panasonic EX-14B

Item Specifications

• Series
  EX-10
• Sensor Body Type
  Miniature Ultra-thin
• Sensor Body Feature
  Front sense 3.5mm thick, H20.5 x W13
• Sensing Mode
  Convergent
• Sensing Mode Details
  Convergent point of 10mm
• Sensor Features
  Ø 0.1mm Gold Wire is Min Detectable Object, 0.1mm Repeatability
• Light Source
  Red LED
• Supply Voltage Details
  12 to 24VDC
• Sensing Range
  2mm to 25mm
• Output
  NPN
• Output Details
  1 each NPN
• Timer
  No
• Output Mode
  Dark-On
• Construction
  Polyethylene terephthalate enclosure, Polyalylate lens
• Temperature
  -20º to +55º C
• IEC/Nema Rating Details
  IP67
• Connection Detail
  Cable 2m
• Item Weight
  0.05 lbs per EA
