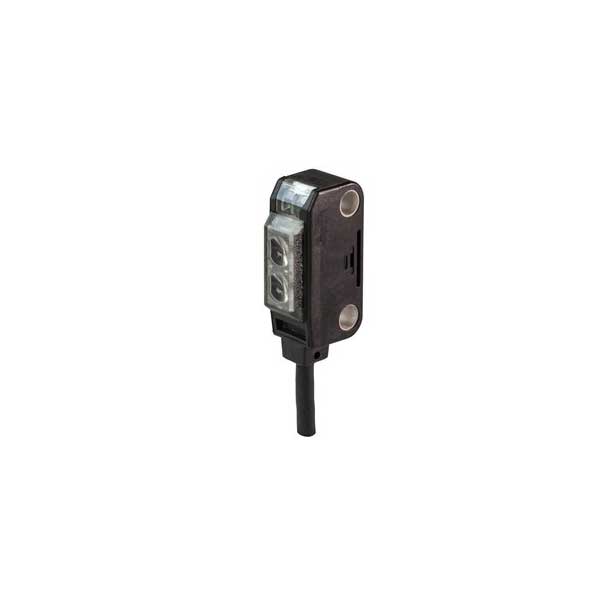

Cảm biến quang Panasonic EX-22A

Item Specifications

• Series
  EX-20
• Sensor Body Type
  Miniature
• Sensor Body Feature
  Side sense 8.2mm thick, H22 x W12.3
• Sensing Mode
  Diffuse
• Sensing Mode Details
  Detects Opaque, transluscent, or clear targets
• Sensor Features
  0.3mm Repeatability, 0.5ms Response, 1-Turn Potentiometer Adjustment
• Light Source
  Red LED
• Supply Voltage Details
  12 to 24VDC
• Sensing Range
  5mm to 160mm
• Output
  NPN
• Output Details
  1 each NPN
• Timer
  No
• Output Mode
  Light-On
• Construction
  Polyethylene terephthalate enclosure, Polyalylate lens
• Temperature
  -20º to +55º C
• IEC/Nema Rating Details
  IP67
• Connection Detail
  Cable 2m
• Item Weight
  0.05 lbs per EA
