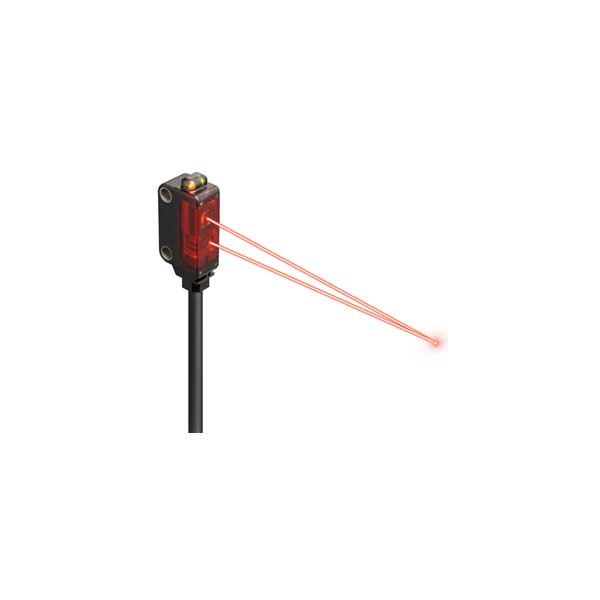

Cảm biến quang Panasonic EX-L221 (thu phát chung)

2.791.000 ₫

SKU: EX-L221
Hãng sản xuất: Panasonic
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT

Series	EX-L200
Sensing Mode	Diffuse
Sensing Mode Features	Opaque & Translucent Target Detection
Sensor Body Type	Ultra-Compact
Sensor Body Feature	Side Screw Mounting
Sensor Type	Self-contained
Sensitivity Setting Type	Potentiometer
Display Type	LED Indicator
Sensor Features	Ultra-compact and self-contained diffuse sensor can detect small gold wire of Ø.01mm. Repeat accuracy on 0.2mm.
Laser Beam Spot Size	ø 1mm
Laser Light Source Details	Red Semiconductor laser – Class 1 FDA, 655nm
Laser Output	2 mW max
Supply Voltage Details	12 to 24 VDC
Setting Distance	45mm to 300mm
Control Output	NPN
Output Details	1 each NPN Output
Output Operation Mode	Light-On/Dark-On selectable
Construction	Polybutylene terephthalate enclosure, acylic front cover, glass lens
Temperature Rating	-10º to +55º C
Protection Rating	IP67
Connection Type	Cabled
Connection Detail	Cable 2m
Item Weight	0.20 lbs per EA
