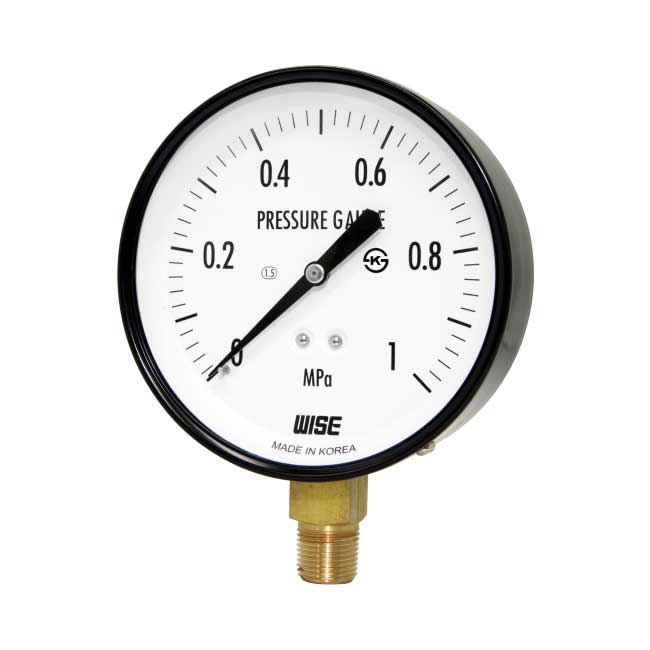

Nominal diameter
40, 50, 60, 75, 100, 150 and 200 mm
Accuracy
40mm: ±3.0% of full scale
50, 60, 75, 100, 150 and 200 mm: ±1.5% of full scale
Scale range (MPa, kPa, bar)
40 mm: 0 ~ 0.2 to 0 ~ 3.5 MPa
50 mm: 0 ~ 0.2 to 0 ~ 10 MPa
60 and 75 mm: -0.1 ~ 0 to 0 ~ 25 MPa
100 mm (New): -0.1 ~ 0 to 0 ~ 35 MPa
100 and 150 mm: -0.1 ~ 0 to 0 ~ 100 MPa
200 mm: -0.1 ~ 0 to 0 ~ 35 MPa
Working temperature
Ambient: -20 ~ 60℃
Fluid: Max. 60℃
Temperature effect
Accuracy at temperature above and below the reference temperature (20℃) will be effected by approximately ±0.4% per 10℃ of full scale
Pressure connection
Brass
Element
40 and 50 mm: Brass
60, 75 and 100 mm (New):
≤10 MPa: Brass
>10 MPa: 316SS
100, 150 and 200 mm :
≤7 MPa: Brass
>7 MPa: 316SS
C type bourdon tube or helical bourdon tube
Case
Black finished steel
Black finished aluminium (Diameter 200 mm)
Cover
Black finished steel
Window
Glass
Movement
Brass
Dial
White aluminium with black graduations
Pointer
Black painted aluminium alloy
Process connection
40 mm: ⅛” PT, NPT and PF
50 mm: ¼”, ⅛” PT, NPT and PF
60 mm: ¼” PT, NPT and PF
75 and 100 mm (New): ⅜” PT, NPT and PF
100, 150 and 200 mm: ½”, ⅜” PT
