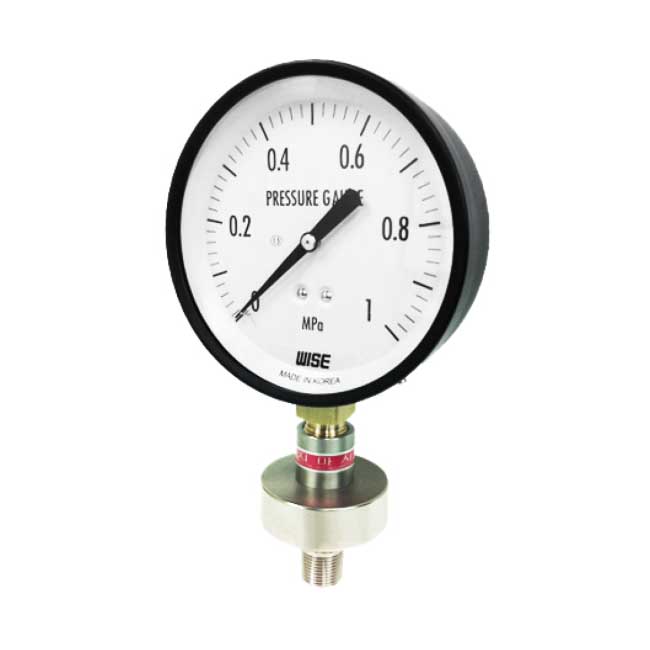

Đồng hồ đo áp suất Wise P170

Hãng sản xuất: WISE
Hàng mới 100%
Xuất xứ: Korea

Nominal diameter	75 and 100 mm
Accuracy	±1.5 % of full scale
Scale range (MPa, kPa, bar)	-0.1 ~ 0 to 0 ~ 2.5 MPa
Working pressure	Steady : 75 % of full scale
	Over range protection : 130 % of full scale
Working temperature	Ambient : -20 ~ 65 ℃
	Fluid : Max. 100 ℃
Special features	Design with internal diaphragm, upper and lower housing welded
	Excellent cost-performance ratio
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
	±0.4 % per 10 ℃ of full scale
Pressure connection	Upper and Under flange : 304SS
Element	Diaphragm : 316L SS
Case	Black painted steel
Cover	Black painted steel
Window	Glass
Movement	Brass
Pointer	Black painted aluminium alloy
Process connection	¼” PT, NPT and PF
	⅜” PT, NPT and PF
Option	Dial size : 60 and 75 mm
	Another process connection size and type
