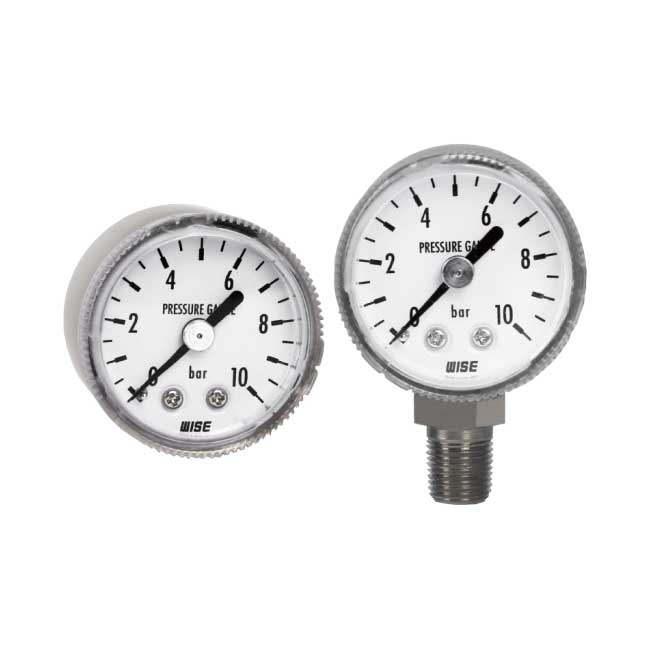

Đồng hồ đo áp suất Wise P235S, P235B

Hãng sản xuất: WISE
Hàng mới 100%
Xuất xứ: Korea

Mã sản phẩm: Wise P235S, P235B Danh mục: Cảm biến áp suất, Đồng hồ đo áp suất

Nominal diameter	35 mm
Accuracy	±3.0 % of full scale
Scale range (MPa, kPa, bar)	0 ~ 0.2 MPa to 0 ~ 3.5 MPa
Working pressure	Steady : 75 % of full scale
	Over range protection : 130 % of full scale
Working temperature	Ambient : P235S : -40 ~ 65 °C
	P235B : -20 ~ 60 °C
	Fluid : P235S : Max. 200 °C
	P235B : Max. 60 °C
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
	±0.4 % per 10 ℃ of full scale
Pressure connection	P235S – Stainless steel (316SS)
	P235B – Brass
Element	“C” type bourdon tube
	P235S – Stainless steel (316SS)
	P235B – Brass
Case	Stainless steel (304SS)
Movement	Stainless steel (304SS)
Dial	White aluminium with black graduations
Pointer	Black painted aluminium alloy
Process connection	⅛”, ¼” PT, NPT and PF
Option	Window : Safety glass with stainless steel cover
