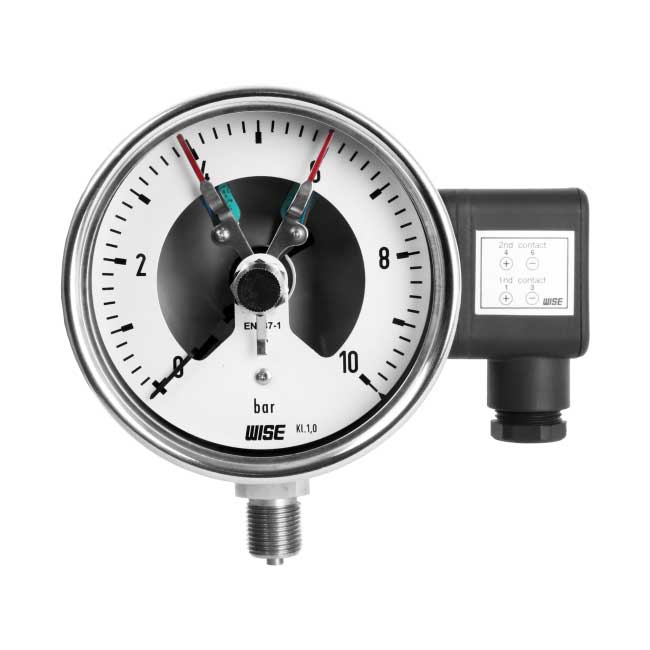

Nominal diameter
100 and 160 mm
Accuracy
±1.0 % of full scale for pressure indication
Scale range (MPa, kPa, bar)
-0.1 ~ 0 to 0 ~ 200 MPa
Working pressure
Steady: 100 % of full scale
Over range protection: 130 % of full scale
Working temperature
Ambient: -40 ~ 65 °C
-40 ~ 65 °C (With silicone filling)
Fluid: Max. 200 °C
Max. 100 °C (With silicone filling)
Degree of protection
EN60529/IEC529/IP67
Temperature effect
Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately ±0.4 % per 10 ℃ of full scale
Pressure connection
Stainless steel (316SS)
Element
Stainless steel (316SS)
<10 MPa: C type bourdon tube
≥10 MPa: Helical type bourdon tube
Case
Stainless steel (304SS)
Bezel ring
Stainless steel (304SS)
Bayonet type
Window
Safety glass: Only available with diameter 100 mm
Polycarbonate: 100 and 160 mm
Movement
Stainless steel
Dial
White aluminium with black graduations
Pointer
Black painted aluminium alloy
Conduit connection
M20 x 1.5
Process connection
⅜”, ½” PT, NPT and PF
Certificates
KCS Ex ia IIC T6
NEPSI Ex ia IIC T6 Ga
Tamb = -25 ~ 56 ºC
Option
Damping movement
