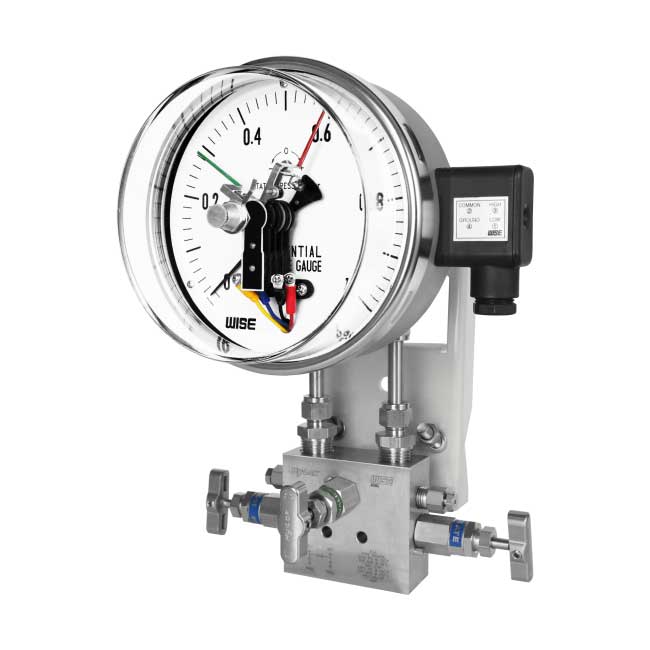

Đồng hồ đo áp suất Wise P690

Nominal diameter	160 mm
Accuracy	±1.6 % of full scale
Scale range (MPa, kPa, bar, mbar)	0 ~ 25 kPa to 0 ~ 0.25 MPa
	0 ~ 0.4 MPa to 0 ~ 2 MPa
Static pressure	Max. 10 MPa
Working temperature	Ambient : -20 ~ 65 °C
	-40 ~ 65 °C (With silicone filling)
	Fluid : Max. 100 °C
Degree of protection	EN60529/IEC529/IP67
Temperature effect	Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
	±0.5 % per 10 ℃ of full scale
Pressure connection	Stainless steel (316SS)
Element	Bellows
	Stainless steel (316L SS)
Case and cover	Stainless steel (304SS) Bayonet type
Dial	White aluminium with black graduations
Window	Polycarbonate
Pointer	Black painted aluminium alloy
Contact	Inductive contact
Conduit connection	M20 x 1.5P
Process connection	¼” NPT(F)
	½” NPT(F) at 3-way and 5-way manifold valve
Standard accessories	Mounting bracket for 2” pipe
	Mounting with silver gray finished steel
Certificates	NEPSI Ex ia IIC T6 Ga
	KCS Ex ia IIC T6
	Tamb = -25 ~ 56 ºC
Option	■ Remote seal
	■ ½” (N)PT female conduit connection
	■ ¾” (N)PT female conduit connection
	■ Mounting bracket with 316SS for 2″ pipe mounting
	■ 3-way manifold valve (316SS)
	■ 5-way manifold valve (316SS)
	■ 3-way manifold valve (Monel)
	■ 5-way manifold valve (Monel)

Thông tin bổ sung

Thương hiệu	Wise
