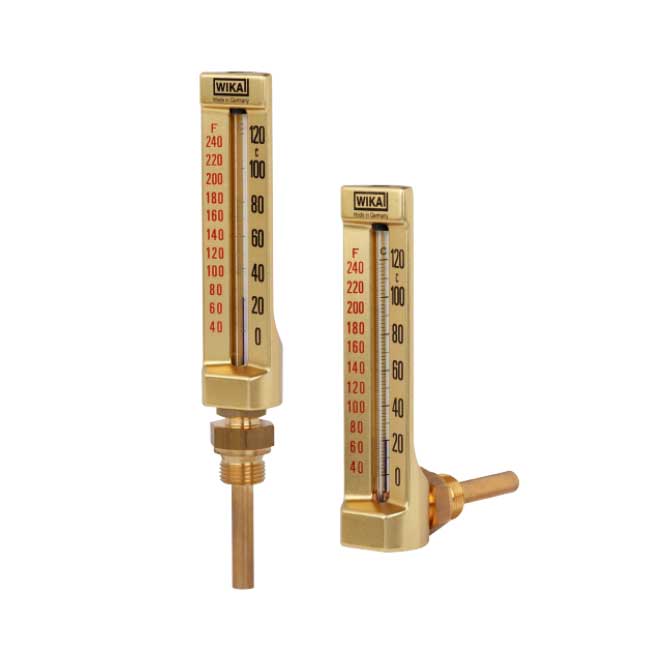

Standard version
Nominal size in mm
110, 150 and 200
Measuring principle
Liquid expansion
Error limit
DIN 16195
Permissible working pressure at the stem
Max. 6 bar
Stem
Ø 10 mm
Ø 6.5 mm for NS 200 x 36 with union nut M24 x 1.5
Case
Aluminium, brass-coloured, anodised
Scale setting
printed with special ink, protected by anodised finish
Thermometer glass insert
Rod shape, prismatic capillary
Thermometric liquid
Blue, wetting
Nominal size 150 x 36 mm
Connection type
Design E, male thread
* Straight design per DIN 16185
Threaded connection
– G ½ B, M20 x 1.5 (form B per DIN)
– G ¾ B, M27 x 2
Threaded connections screwed into housing Insertion length l1 = 63, 100, 160, 250 mm
Copper alloy
* 90° angle version per DIN 16186
Threaded connection
– G ½ B, M20 x 1.5 (form S per DIN)
– G ¾ B, M27 x 2
Threaded connectors inserted into housing, removable Insertion length l1 = 63, 100, 160, 250 mm
Copper alloy
* 135° angle version
Threaded connection
– G ½ B, M20 x 1.5
– G ¾ B, M27 x 2
Threaded connections screwed into housing Insertion length l1 = 63, 100, 160, 250 mm
Copper alloy
Nominal size 200 x 36 mm
Connection type
Design E, male thread
* Straight design per DIN 16189
Threaded connection
– G ½ B, M20 x 1.5 (form B1 per DIN)
– G ¾ B, M27 x 2 (form B per DIN)
Threaded connections screwed into housing Insertion length l1 = 63, 100, 160, 250 mm
Copper alloy
* 90° angle version per DIN 16190
Threaded connection
– G ½ B, M20 x 1.5 (form S1 per DIN)
– G ¾ B, M27 x 2 (form S per DIN)
Threaded connectors inserted into housing, removable Insertion length l1 = 63, 100, 160, 250 mm
Copper alloy
* 135° angle version
Threaded connection
– G ½ B, M20 x 1.5 (form B1 per DIN)
– G ¾ B, M27 x 2 (form B per DIN)
Threaded connections screwed into housing Insertion length l1 = 63, 100, 160, 250 mm
Copper alloy
