| Specification: | cMT3092X |
| Display | 9.7” TFT |
| Resolution | 1024 x 768 |
| Brightness (cd/m2) | 350 |
| Contrast Ratio | 500:01:00 |
| Backlight Type | LED |
| Backlight Life Time | >30,000 hrs. |
| Colors | 262K |
| LCD Viewing Angle (T/B/L/R) | 60/70/70/70 |
| Pixel Pitch (mm) | 0.192(H) x 0.192(V) |
| Touch Panel | |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Memory | |
| Flash | 4 GB |
| RAM | 1 GB |
| Processor | Quad-core 32-bit RISC 1.6GHz |
| I/O Port | |
| SD Card Slot | N/A |
| USB Host | USB 2.0 x 1 |
| USB Client | N/A |
| Ethernet | LAN 1: 10/100/1000 Base-T x 1 |
| LAN 2: 10/100 Base-T x 1 | |
| COM Port | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus |
| Con.B: COM1 RS-232 4W, COM3 RS-232 2W* | |
| RS-485 Isolation | N/A |
| CAN Bus | Yes |
| HDMI | N/A |
| Audio Output | Built-in Mono Speaker |
| RTC | Built-in |
| Power | |
| Input Power | 24±20%VDC |
| Power Isolation | Built-in |
| Power Consumption | 1A@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MW @ 500VDC |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Specification | |
| PCB Coating | Yes |
| Enclosure | Plastic |

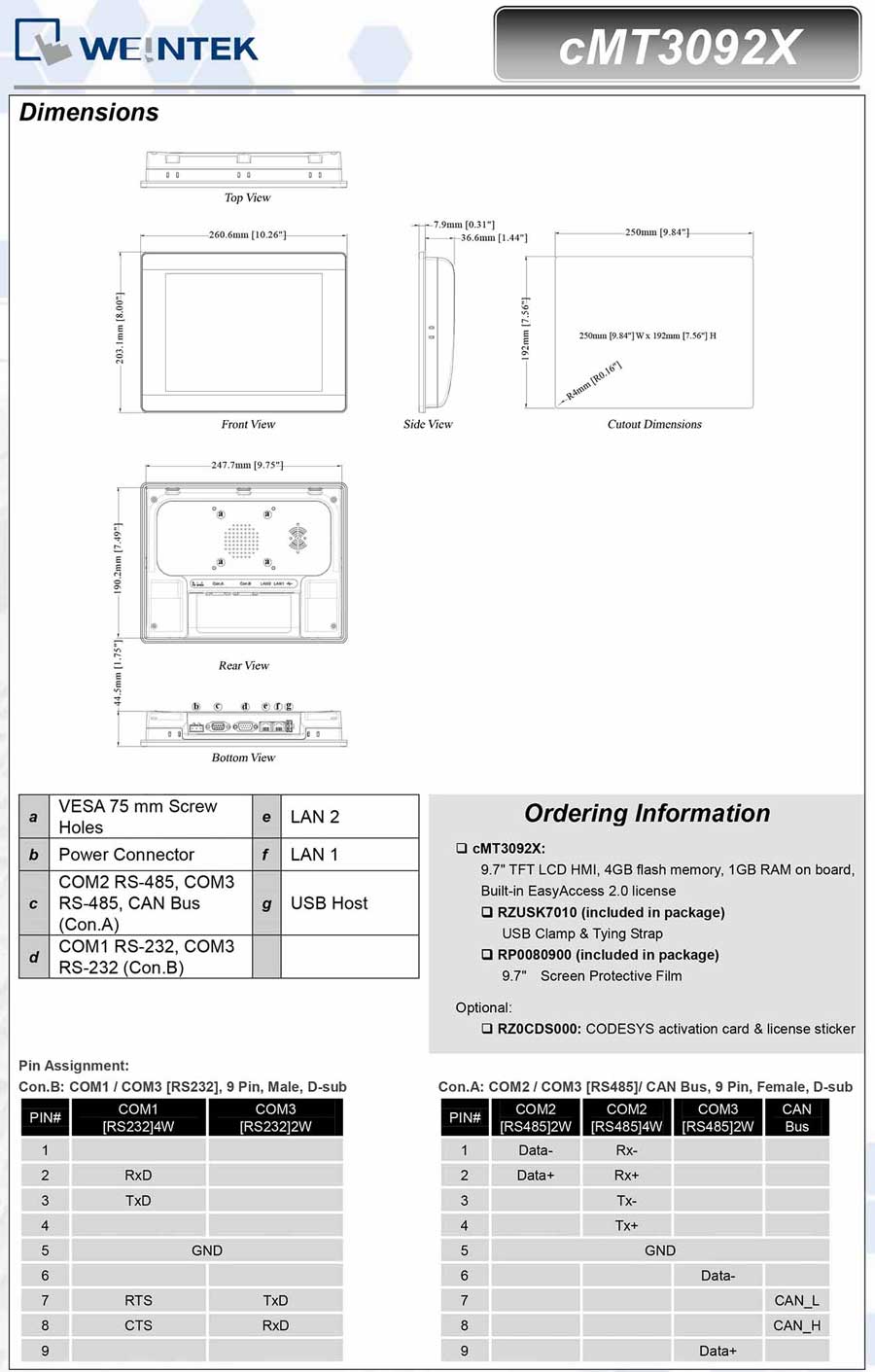

| Dimensions WxHxD | 260.6 x 203.1 x 44.5 mm |
| Panel Cutout | 250 x 192 mm |
| Weight | Approx. 1 kg |
| Mount | Panel mount, VESA mount 75 x 75 mm |
| Environment | |
| Protection Structure | NEMA4 / IP65 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Certificate | |
| CE | CE marked |
| Software | EasyBuilder Pro V6.04.01 or later versions |
