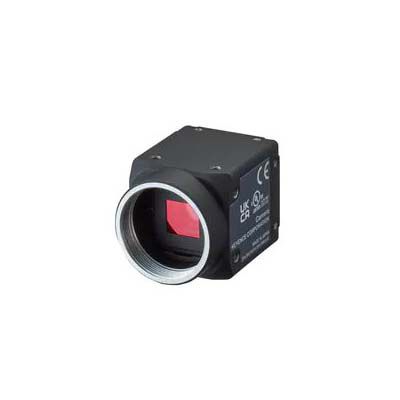

Keyence KV-CAC1H

Model		KV-CAC1H
General specifications	Vibration resistance	10 to 500 Hz; Power spectral density: 0.033 G²/Hz; X, Y, and Z directions
	Operating ambient temperature	0 to +50°C 32 to 122°F (No freezing)
	Operating ambient humidity	35 to 85% RH (No condensation)
	Storage ambient temperature	−20 to +60°C -4 to +140°F (No freezing)
	Storage relative humidity	35 to 85% RH (No condensation)
	Enclosure rating	IP64^*1
	Pollution degree	3
Performance specifications	Installation distance	Varies by lens
	Focal distance
	Field of view	Horizontal field of view: Varies by lens Vertical field of view: Varies by lens
	Image-receiving element	1/2.9-inch color CMOS
	Resolution	640 (H) × 480 (V)
	Frame rate	10/30/120 fps
	Internal current consumption	70 mA or less ^*2
	Weight	Approx. 65 g 2.29 oz
^1 The enclosure rating is evaluated with the camera cable and an IP64-compliant lens connected. ^2 Maximum current consumption inside the camera when the power supplied to the CPU unit is 24 VDC (−15%/+20%). The maximum current consumption inside the camera is 120 mA when the unit power supplied to the camera is 12 to 24 VDC (−10%/+20%).
