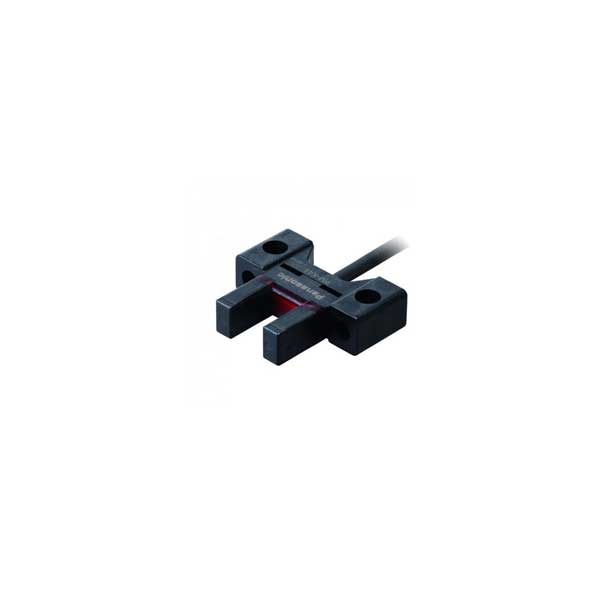

Cảm biến quang Panasonic PM-K45

Item Specifications

• Series
  PM45
• Sensing Mode
  Slot sensor – amplifier built-in
• Sensing Distance
  6mm
• Light Source
  Infrared LED non-modulated
• Minimum Detectable Object
  0.8 × 1.2mm opaque object
• Hysteresis
  < 0.05mm
• Repeatability
  < 0.01mm
• Supply Voltage
  5 to 24VDC
• Current Consumption
  < 15mA
• Output
  NPN x 2
• Output Mode
  LIght-On and Dark-On
• Operation Temperature
  –25 to +55 °C
• IP Rating
  IP64
• Enclosure
  PBT enclosure, polycarbonate display section
• Connection Method Details
  Cable 1 meter
• Item Weight
  0.04 lbs per EA
