| Model | DOP-107DV |
| Panel type | 7″ TFT LCD (65535 colors) |
| Resolution | 800 x 480 pixels |
| Backlight | LED back light (half-life under room temperature 25°C > 20,000 hours)*1 |
| Display range | 154.08 mm * 85.92 mm |
| Brightness | 400 cd / m² (Typ.) |
| CPU | ARM Cortex-A8 (800 MHz) |
| Flash ROM | 256 Mbytes |
| RAM | 256 Mbytes |
| Touchscreen | 4-wire resistive touchscreen > 1,000,000 operated |
| Buzzer | Multi-tone frequency (2 – 4 kHz) / 80 dB |
| Network interface | 1 port, 10/100 Mbps auto-detection (with built-in isolated power circuit)*2 |
| USB | 1 USB Slave Ver 2.0; 1 USB Host Ver 2.0 |
| SD | N/A |
| COM1 | RS-232 (supports flow control) / RS-485*2 |
| COM2 | RS-422 / RS-485*2 |
| COM3 | N/A |
| Auxiliary function key | N/A |
| Calendar | Built-in |
| Cooling method | Natural cooling |
| Approvals | CE / UL (use shielding network cable and magnetic ring with the filter of 300 ohm / 100 MHz) |
| Panel waterproof level | IP65 / NEMA4 / UL TYPE 4X (indoor use only) |
| Operation voltage*2 | DC +24V (-15% to +15%) (use an isolated power supply) |
| Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation) | |
| Leakage current | 500 VAC for 1 minute (between DC24V terminal and FG terminal) |
| Power consumption*3 | 8.8 W (Max)*3 |
| Backup battery | 3V lithium battery CR2032 x 1 |
| Backup battery life | About 3 years or more at 25°C (77°F) |
| (subject to operation temperature and condition) | |
| Operation temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to +60°C (-4°F to 140°F) |
| 10% to 90% RH [0 to 40°C (32°F to 104°F)], | |
| Operating environment | 10% to 55% RH [41 to 50°C (105.8°F to 122°F)], pollution degree: 2 |
| Vibration resistance | Conforms to IEC61131-2: continuous vibration 5 Hz – 8.3 Hz with amplitude 3.5 mm; 8.3 Hz – 150 Hz with amplitude 1G |
| Shock resistance | Conforms to IEC60068-2-27: 11 ms, 15 G Peak, in X, Y, Z directions each for 6 times |

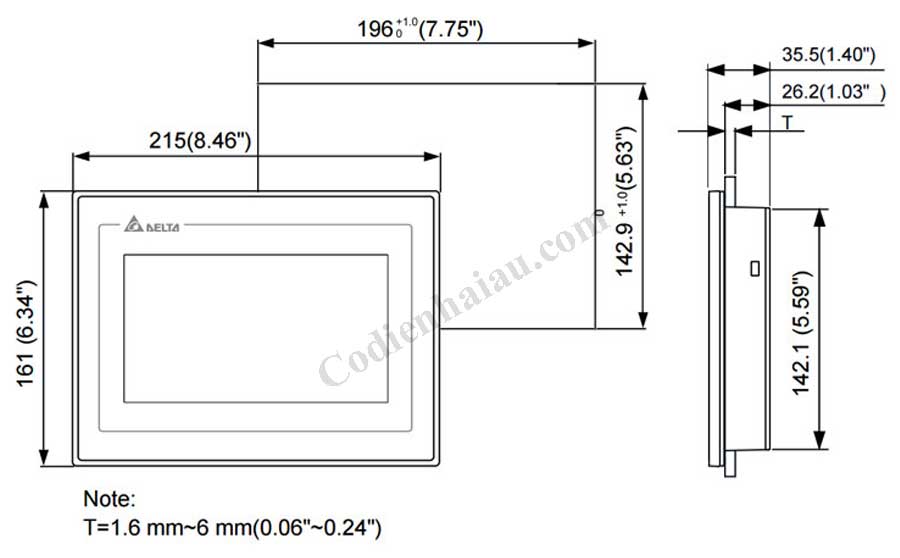

| Dimensions(W) x (H) x (D) mm | 215 x 161 x 35.5 |
| Mounting dimensions(W) x (H) mm | 196.9 x 142.9 |
| Weight | Approx. 700 g |
Delta DOP-100
| MODEL | THÔNG SỐ |
|---|---|
| Basic HMI | |
| DOP-103BQ | 4,3 inch,1 Com, WQVGA TFT (480x) |
| DOP-107BV | 7 inch ,1 Com, WVGA TFT (800x |
| Standard HMI (General Type) | |
| DOP-107DV | 7 inch,1 Com + 1 Ethernet |
| Standard HMI | |
| DOP-105CQ | 5.6 inch, 3 Com |
| DOP-107CV | 7 inch, 2 Com, WVGA TFT (800x |
| DOP-110CS | 10 inch,2 Com, WSVGA TFT (1024x) |
| DOP-110CG | 10 inch,2 Com, WVGA TFT (800x |
| Standard HMI (Ethernet Type) | |
| DOP-107IV | 7 inch, 3 Com + 1 Ethernet |
| DOP-108IG | 8 inch, 3 Com + 1 Ethernet |
| DOP-110IG | 10 Inch, 3 Com,1 Etherrnet |
| DOP-110IS | 10 Inch, 3 Com,2 Etherrnet |
| DOP-107EV | 7 inch, 2 Com+ 1 Ethernet, WVGA TFT (800x) |
| DOP-107EG | 7 inch, 2 Com+ 1 Ethernet, XGA TFT(1024x) |
| Handheld HMI | |
| DOP-107H | |
| Advanced HMI | |
| DOP-103WQ | 4,3 inch ,1 Com,1 Ethernet,WQVGA TFT(480x ) |
| DOP-107WV | 7 inch,1 Com,1 Ethernet, WVGA TFT (800x |
| DOP-110WS | 10 inch,1 Com,1 ethernet,WSVGA TFT (1024x) |
| DOP-112WX | 12.1 inch, 2 Com,2 Ethernet |
| DOP-115WX | 15 inch, 2 Com,2 Ethernet |
| Advanced HMI (Multimedia Type) | |
| DOP-112MX | 12.1 inch, 4 Com,2 Ethernet |
| DOP-115MX | 15 inch, 4 Com,2 Ethernet |
Cách lựa chọn HMI Delta DOP-100 series
