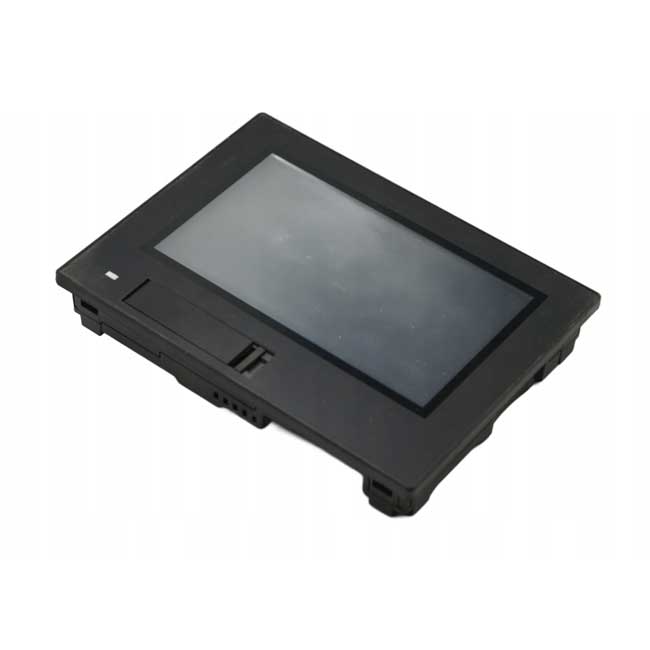

HMI Keyence VT5-W07M

12.800.000

SKU: VT5-W07M
Hãng sản xuất: Keyence
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: Hóa đơn VAT

Dịch vụ kèm theo:
✓ Cài đặt & Sửa chữa màn hình HMI Keyence theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời
cam kết bán hàng giá tốt
Báo giá
Mã sản phẩm: VT5-W07M Danh mục: ,
Model VT5-W07M
General specifications Current consumption 900 mA max.
General
specifications
Power supply voltage 24 VDC ±20%
Shock resistance Intermittent vibration Frequency:
5 to 9 Hz
Half amplitude: 3.5 mm*1
Frequency:
9 to 150 Hz
Acceleration: 9.8 m/s2*1
Continuous vibration Frequency:
5 to 9 Hz
Half amplitude: 1.75 mm*1
Frequency:
9 to 150 Hz
Acceleration: 4.9 m/s2*1
General specifications Structure Panel built-in type with IP65f-equivalent enclosure rating; dustproof and waterjet-proof only at front panel*2
Overvoltage category I
Pollution degree 2
Noise resistance 1500 Vp-p or more, pulse width: 1 µs, 50ns (by noise simulator)
Withstand voltage 1500 VAC for 1 minute (between power terminal and housing)
Insulation resistance 50 MΩ minimum (tested with 500 VDC megohmmeter between power terminal and housing)
Operating environment No dust or corrosive gas
Ambient operating temperature 0 to +50°C*3
Ambient operating humidity 20 to 85% RH (no condensation)*4
Ambient storage temperature -20 to +60°C (no freezing)
Ambient storage humidity 20 to 85% RH (no condensation)
Weight Approx. 650 g
Performance
specifications
Display panel Displayed components TFT LCD
Display colour 256 greyscale
Number of pixels W 800 × H 480 pixels
Effective display area W 153.6 × H 86.6 mm
Data backup Screen data Flash ROM
Record data SRAM backup: Primary lithium battery (5 years above of service life at 25°C)
Performance specifications Backlightlamp System White LED (not replaceable)
Performance
specifications
Backlight Service life (normal temperature and humidity) Approx. 50000 h
Performance specifications Touchswitch System Analogue resistive film
Performance
specifications
Touch control
switch
Operating force 0.98 N or less
Performance specifications Touchswitch Life-span 1 million times above
Screen data internal memory Memory capacity 128 MB
Calendar timer Accuracy: ±40 s/month (25°C), Backup: Primary lithium battery (5 years above of service life at 25°C)
*1 Complies with JIS B3502 IEC61131-2
Scan times: 10 times each in X, Y, Z directions (100 minutes)
*2 When the front USB cover is closed.
*3 When the VT5 Series unit is mounted vertically
*4 If the ambient temperature exceeds 40°C, do not exceed a relative humidity of 85% RH at 40°C.

Tham khảo các loại HMI phổ biến

Thông tin bổ sung

Thương hiệu
Kích thước màn hình

7 inch

Series
