Nhiều người mua

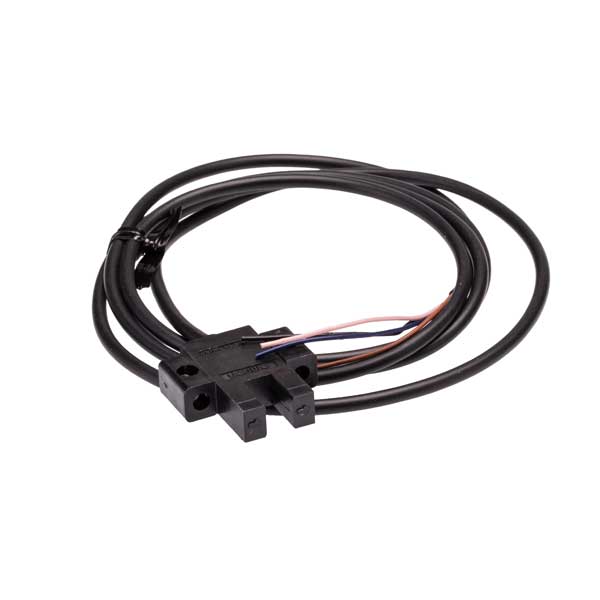

Cảm biến quang Omron EE-SX670-WR 1M (thu phát)

287.000 ₫

Mã sản phẩm: EE-SX670-WR 1M
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Báo giá
Mã: EE-SX670-WR 1M Danh mục: , Thẻ:

Non-modulated Through-beam type, Grooved Type (Standard), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator

LoạiPhotoelectric fork sensor
Hình dángK micro type
Phương pháp phát hiệnThrough-beam (Full set)
Khoảng cách phát hiện5mm
Đối tượng phát hiệnOpaque
Kích thước vật phát hiện tiêu chuẩn2×0.8mm
Nguồn sángInfrared
Nguồn cấp5…24VDC
Chiều rộng khe/rãnh5mm
Chiều sâu khe/rãnh9mm
Số trục quang1
Tần số đóng/mở1kHz
Cài đặt độ nhạyNo
Loại đầu raNPN
Chế độ hoạt độngDark ON, Light ON
Kiểu hiển thịLED indicator
Mạch bảo vệNo
Chức năngLight-ON/Dark-ON selectable
Truyền thôngNo
Vật liệu vỏPlastic
Phương pháp kết nốiPre-wired
Chiều dài cáp1m
Môi trường ánh sángFluorescent lamp: 1,000 lx max.
Môi trường hoạt độngStandard
Nhiệt độ môi trường-25…55°C
Độ ẩm môi trường5…85%
Khối lượng tương đối18.9g
Chiều rộng tổng thể25.4mm
Chiều cao tổng thể28.2mm
Chiều sâu tổng thể6.95mm
Cấp bảo vệIP50
Tiêu chuẩnCE, UL
Phụ kiện đi kèmNot equipped
Phụ kiện mua rờiNo
Model NumberDescription
EE-SX470Non-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator
EE-SX471Non-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator
EE-SX472Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator
EE-SX473Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator
EE-SX474Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Light-ON, NPN open collector output, Light indicator
EE-SX670Non-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX670-WR 1MNon-modulated Through-beam type, Grooved Type (Standard), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX670ANon-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light
EE-SX670PNon-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX670P-WR 1MNon-modulated Through-beam type, Grooved Type (Standard), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX670RNon-modulated Through-beam type, Grooved Type (Standard), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light
EE-SX671Non-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX671-WR 1MNon-modulated Through-beam type, Grooved Type (L-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX671ANon-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light
EE-SX671PNon-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX671P-WR 1MNon-modulated Through-beam type, Grooved Type (L-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX671RNon-modulated Through-beam type, Grooved Type (L-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light
EE-SX672Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX672-WR 1MNon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX672ANon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light
EE-SX672PNon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX672P-WR 1MNon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX672RNon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 7 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light
EE-SX673Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX673-WR 1MNon-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX673ANon-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light
EE-SX673PNon-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX673P-WR 1MNon-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX673RNon-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light
EE-SX674Non-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX674-WR 1MNon-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX674ANon-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, No incident light
EE-SX674PNon-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX674P-WR 1MNon-modulated Through-beam type, Grooved Type (Close-mounting), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX674RNon-modulated Through-beam type, Grooved Type (Close-mounting), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, No incident light
EE-SX675Non-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX675-WR 1MNon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX675PNon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX675P-WR 1MNon-modulated Through-beam type, Grooved Type (T-shaped)(Slot center 10 mm), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX676Non-modulated Through-beam type, Grooved Type (F-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX676-WR 1MNon-modulated Through-beam type, Grooved Type (F-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX676PNon-modulated Through-beam type, Grooved Type (F-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX676P-WR 1MNon-modulated Through-beam type, Grooved Type (F-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX677Non-modulated Through-beam type, Grooved Type (R-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX677-WR 1MNon-modulated Through-beam type, Grooved Type (R-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN open collector output, Light indicator
EE-SX677PNon-modulated Through-beam type, Grooved Type (R-shaped), Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator
EE-SX677P-WR 1MNon-modulated Through-beam type, Grooved Type (R-shaped), Pre-wired models, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), PNP open collector output, Light indicator

Thông tin bổ sung

Thương hiệu
Thời gian bảo hành

1 Năm

Điện áp ngõ vào
Khoảng cách phát hiện

5mm

Ngõ ra

NPN

Series
