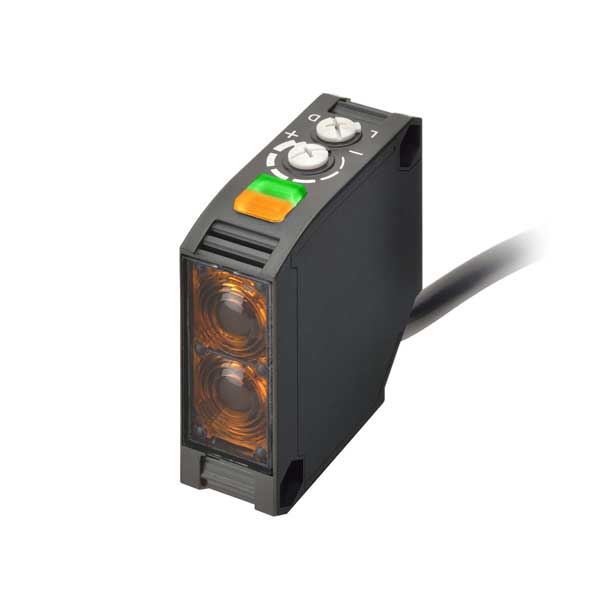

Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm)
Omron E3JK
| Model Number | Description |
|---|---|
| E3JK-DN11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DN12 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DN13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DN14 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DP11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DP12 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DP13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DP14 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR11-C 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR12 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR12-C 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR13-C 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR14 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR14-C 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RN11 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RN12 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RN13 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RP11 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RP12 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RP13 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RR11 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR11-C 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR12 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR12-C 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR13 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RR13-C 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TN11 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TN12 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TN13 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TN14 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TP11 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TP12 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TP13 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TP14 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR11 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR11-C 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR12 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR12-C 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR13 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR13-C 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR14 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR14-C 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
