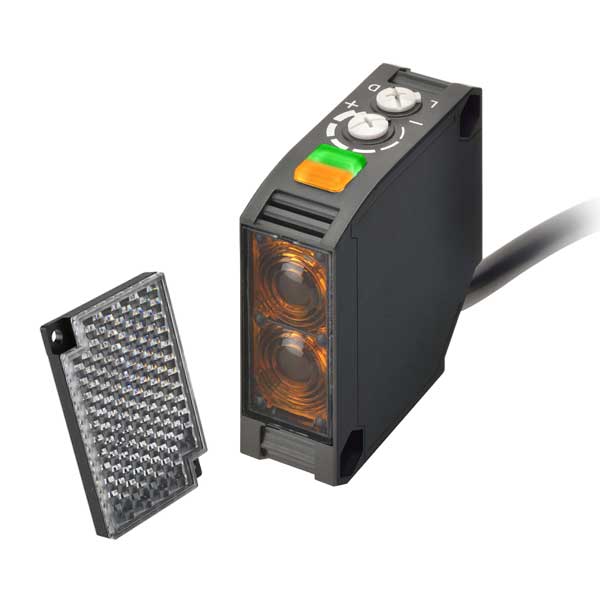

Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm)
| Nguồn cấp | 24…240VAC, 24…240VDC |
| Phương pháp phát hiện | Phản xạ gương |
| Khoảng cách phát hiện | Depend on the Reflector (Sold separately) |
| Loại đầu ra | SPDT |
| Chế độ hoạt động | Dark ON, Light ON |
| Phụ kiện mua rời | Bracket: E39-L40, Reflectors: E39-R1, Reflectors: E39-R1S, Reflectors: E39-R2 […] |
| Loại | Cảm biến quang tiêu chuẩn (tích hợp bộ khuếch đại) |
| Hình dáng | Hình chữ nhật |
| Nguyên lý phát hiện | Polarization filter |
| Đối tượng phát hiện | Vật mờ, đục |
| Kích thước vật phát hiện tiêu chuẩn | D75mm |
| Nguồn sáng | LED đỏ |
| Cài đặt độ nhạy | Có thể điều chỉnh |
| Thời gian đáp ứng | 20ms |
| Kiểu hiển thị | Hiển thị LED |
| Mạch bảo vệ Chức năng | No |
| Chức năng | Light-ON/Dark-ON selectable, Mutual interference prevention |
| Truyền thông | Không |
| Vật liệu vỏ | Plastic |
| Phương pháp lắp đặt | Surface mounting |
| Phương pháp kết nối | Dây liền |
| Chiều dài cáp | 2m |
| Môi trường ánh sáng | Incandescent lamp: 3,000 lx max, Sunlight: 11,000 lx max. |
| Môi trường hoạt động | Chống nước |
| Nhiệt độ môi trường | -25…55°C |
| Độ ẩm môi trường | 35…85% |
| Khối lượng tương đối | 180g |
| Chiều rộng tổng thể | 18mm |
| Chiều cao tổng thể | 52mm |
| Chiều sâu tổng thể | 50mm |
| Cấp bảo vệ | IP64 |
| Tiêu chuẩn | CCC, CE |
Omron E3JK
| Model Number | Description |
|---|---|
| E3JK-DN11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DN12 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DN13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DN14 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DP11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DP12 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DP13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DP14 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR11 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR11-C 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR12 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR12-C 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-DR13 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR13-C 2M | Diffuse-reflective, Sensing distance White paper 300 x 300 mm: 2.5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR14 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-DR14-C 2M | Diffuse-reflective, Sensing distance White paper 100 x 100 mm: 300 mm, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RN11 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RN12 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RN13 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RP11 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RP12 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RP13 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RR11 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR11-C 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR12 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR12-C 2M | Retro-reflective with M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 6 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-RR13 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-RR13-C 2M | Retro-reflective without M.S.R. function, Sensing distance When using the E39-R1: 100 mm to 7 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TN11 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TN12 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TN13 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TN14 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, NPN, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TP11 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TP12 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TP13 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TP14 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, PNP, Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR11 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR11-C 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR12 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR12-C 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Red LED (624 nm) |
| E3JK-TR13 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR13-C 2M | Through-beam type, Sensing distance 40 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR14 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
| E3JK-TR14-C 2M | Through-beam type, Sensing distance 5 m, Light-ON/Dark-ON selectable, Relay output (SPDT), Pre-wired models (2 m), Infrared LED (850 nm) |
