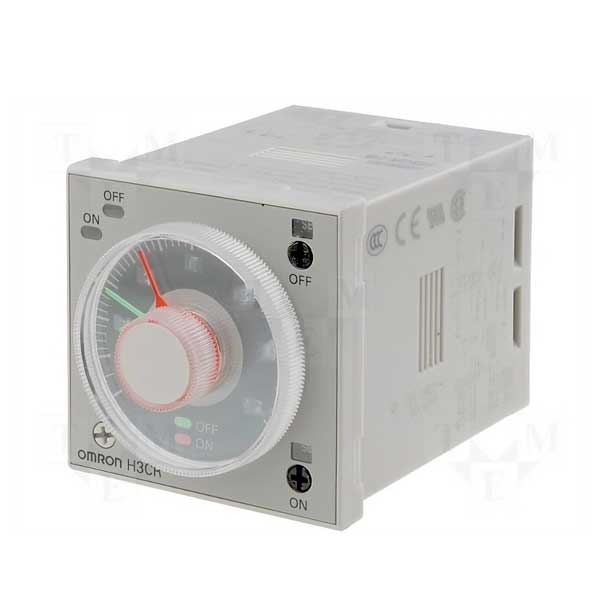

100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, Flicker OFF start, Time range: 0.05 to 1.2 s (18 range), 8-pin
| Nguồn cấp | 100…240VAC, 100…125VDC |
| Dải thời gian | 0.05s…300h |
| Chế độ hoạt động | Twin timer, Flicker OFF start |
| Đầu ra trễ | DPDT |
| Phụ kiện đi kèm | No |
| Phụ kiện mua rời | Back connecting: P3G-08, Flush mounting adapter: Y92F-30, Flush mounting adapter: Y92F-73, Flush mounting adapter: Y92F-74, Socket: P2CF-08, Front connecting socket: P2CF-08-E, Hold-down clip (for PF085A socket): Y92H-8, Protective cover: Y92A-48B, Socket: PL08, Socket: PL08-Q, Socket: PLE08-0 […] |
| Loại | Bộ đặt thời gian tương tự |
| Kiểu hiển thị | Dial |
| Thời gian hoạt động | Power ON start |
| Dải thời gian hiển thị | 1.2s, 3s, 12s, 30s, 120s, 300s, 1.2h, 12h, 3h, 30h, 120h, 300h, 1.2min, 12min, 3min, 30min, 120min, 300min […] |
| Kiểu đầu ra | Relay |
| Công suất đầu ra (tải điện trở) | 5A at 250VAC, 5A at 30VDC |
| Số lượng chân pin | 8 |
| Hình dạng chân pin | Round |
| Kiểu kết nối | Chân cắm |
| Kiểu lắp đặt Chức năng | Chân cắm |
| Nhiệt độ môi trường | -10…55°C |
| Độ ẩm môi trường | 35…85% |
| Khối lượng tương đối | 100g |
| Chiều rộng tổng thể | 48mm |
| Chiều cao tổng thể | 48mm |
| Chiều sâu tổng thể | 84mm |
| Cấp bảo vệ | IP40 |
| Tiêu chuẩn | CCC, CE, CSA, LR, RU |
Omron H3CR
| Model Number | Description |
|---|---|
| H3CR-A AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Input No-voltage input, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Signal ON/OFF delay/Signal OFF delay/Interval/Signal ON/OFF delay/One shot output, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-A AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Input No-voltage input, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Signal ON/OFF delay/Signal OFF delay/Interval/Signal ON/OFF delay/One shot output, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-A-301 AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Input No-voltage input, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Signal ON/OFF delay/Signal OFF delay/Interval/Signal ON/OFF delay/One shot output, Time range: 0.1 to 2.4 s (18 range), 11-pin |
| H3CR-A-301 AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Input No-voltage input, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Signal ON/OFF delay/Signal OFF delay/Interval/Signal ON/OFF delay/One shot output, Time range: 0.1 to 2.4 s (18 range), 11-pin |
| H3CR-A8 AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-A8 AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-A8-301 AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.1 to 2.4 s (18 range), 8-pin |
| H3CR-A8-301 AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.1 to 2.4 s (18 range), 8-pin |
| H3CR-A8E AC/DC24-48 | 24 to 48 VAC 50/60 Hz, 24 to 48 VDC, Output Time-limit: SPDT Instantaneous: SPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-A8E AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: SPDT Instantaneous: SPDT, ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-A8S AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output One transistor output (Time-limit), ON delay/Flicker OFF start/Flicker ON start/Interval/One shot output, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-AP AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Input Voltage input, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Signal ON/OFF delay/Signal OFF delay/Interval/Signal ON/OFF delay/One shot output, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-AP AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Input Voltage input, Output Time-limit: DPDT, ON delay/Flicker OFF start/Flicker ON start/Signal ON/OFF delay/Signal OFF delay/Interval/Signal ON/OFF delay/One shot output, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-AS AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Input No-voltage input, Output One transistor output (Time-limit), ON delay/Flicker OFF start/Flicker ON start/Signal ON/OFF delay/Signal OFF delay/Interval/Signal ON/OFF delay/One shot output, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-F AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, Flicker OFF start, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-F AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output Time-limit: DPDT, Flicker OFF start, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-F8 AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, Flicker OFF start, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-F8 AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output Time-limit: DPDT, Flicker OFF start, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-F8N AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, Flicker ON start, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-F8N AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output Time-limit: DPDT, Flicker ON start, Time range: 0.05 to 1.2 s (18 range), 8-pin |
| H3CR-FN AC100-240/DC100-125 | 100 to 240 VAC 50/60 Hz, 100 to 125 VDC, Output Time-limit: DPDT, Flicker ON start, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-FN AC24-48/DC12-48 | 24 to 48 VAC 50/60 Hz, 12 to 48 VDC, Output Time-limit: DPDT, Flicker ON start, Time range: 0.05 to 1.2 s (18 range), 11-pin |
| H3CR-G8EL AC100-120 | 100/110/120 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit) Instantaneous: SPST-NO, Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-G8EL AC200-240 | 200/220/240 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit) Instantaneous: SPST-NO, Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-G8EL-31 AC100-120 | 100/110/120 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit) Instantaneous: SPST-NO, Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-G8EL-31 AC200-240 | 200/220/240 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit) Instantaneous: SPST-NO, Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-G8L AC100-120 | 100/110/120 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit), Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-G8L AC200-240 | 200/220/240 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit), Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-G8L-30 AC100-120 | 100/110/120 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit), Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-G8L-30 AC200-240 | 200/220/240 VAC 50/60 Hz, Output Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit), Star-delta, Time range: 0.5 to 6 s (4 range), 8-pin |
| H3CR-H8L AC/DC24 M | 24 VAC 50/60 Hz, 24 VDC, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8L AC/DC24 S | 24 VAC 50/60 Hz, 24 VDC, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8L AC100-120 M | 100/110/120 VAC 50/60 Hz, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8L AC100-120 S | 100/110/120 VAC 50/60 Hz, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8L AC200-240 M | 200/220/240 VAC 50/60 Hz, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8L AC200-240 S | 200/220/240 VAC 50/60 Hz, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8L DC100-125 M | 100 to 125 VDC, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8L DC100-125 S | 100 to 125 VDC, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8L DC48 M | 48 VDC, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8L DC48 S | 48 VDC, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8RL AC/DC24 M | 24 VAC 50/60 Hz, 24 VDC, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8RL AC/DC24 S | 24 VAC 50/60 Hz, 24 VDC, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8RL AC100-120 M | 100/110/120 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8RL AC100-120 S | 100/110/120 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8RL AC200-240 M | 200/220/240 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8RL AC200-240 S | 200/220/240 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8RL DC100-125 M | 100 to 125 VDC, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8RL DC100-125 S | 100 to 125 VDC, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-H8RL DC48 M | 48 VDC, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 8-pin |
| H3CR-H8RL DC48 S | 48 VDC, Input No-voltage input, Output Time-limit: SPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 8-pin |
| H3CR-HRL AC/DC24 M | 24 VAC 50/60 Hz, 24 VDC, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 11-pin |
| H3CR-HRL AC/DC24 S | 24 VAC 50/60 Hz, 24 VDC, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 11-pin |
| H3CR-HRL AC100-120 M | 100/110/120 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 11-pin |
| H3CR-HRL AC100-120 S | 100/110/120 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 11-pin |
| H3CR-HRL AC200-240 M | 200/220/240 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 11-pin |
| H3CR-HRL AC200-240 S | 200/220/240 VAC 50/60 Hz, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 11-pin |
| H3CR-HRL DC100-125 M | 100 to 125 VDC, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 11-pin |
| H3CR-HRL DC100-125 S | 100 to 125 VDC, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 11-pin |
| H3CR-HRL DC48 M | 48 VDC, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 min (4 range), 11-pin |
| H3CR-HRL DC48 S | 48 VDC, Input No-voltage input, Output Time-limit: DPDT, Power OFF-delay, Time range: 0.05 to 0.6 s (4 range), 11-pin |
Download tài liệu Timer Omron dòng H3CR Series
► Datasheet Omron H3CR Series
