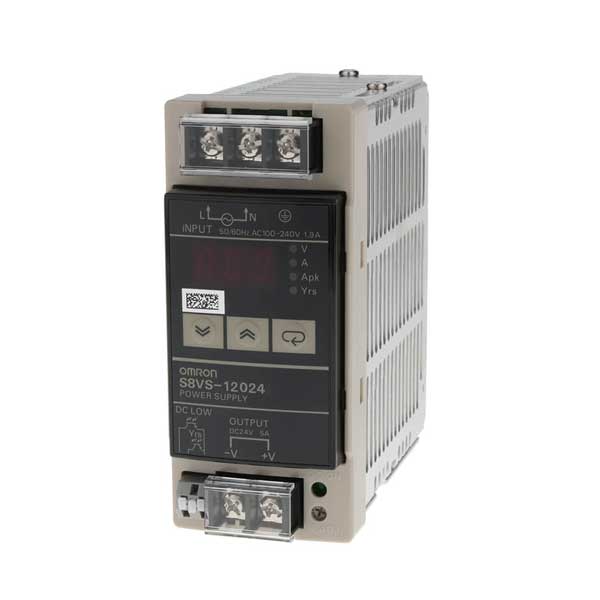

Power supply, 120 W, 100 to 240 VAC input, 24VDC 5A output, DIN rail mounting, digital display with running voltage and current, peak current, and maintenance monitor function with settable alarm point
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 120 W |
| Efficiency | 0.85 |
| Output voltage | 24 V |
| Rated output current | 5A |
| Temperature range | 25-85 °C |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | Transistor – sinking |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 50 mm |
| Product Height (unpacked) | 115 mm |
| Product Depth (unpacked) | 121.3 mm |
Omron S8VS Series
| Mã sản phẩm | Lắp đặt | Điện áp ngõ ra | Dòng điện | Công suất |
|---|---|---|---|---|
| S8VS-01505 | DIN Rail | 5V | 3A | 15W |
| S8VS-03005 | DIN Rail | 5V | 6A | 30W |
| S8VS-01512 | DIN Rail | 12V | 1.25A | 15W |
| S8VS-03012 | DIN Rail | 12V | 2.5A | 30W |
| S8VS-01524 | DIN Rail | 24V | 0.6A | 15W |
| S8VS-03024 | DIN Rail | 24V | 1.25A | 30W |
| S8VS-24024-F | DIN Rail | 24V | 10A | 240W |
| S8VS-24024A | DIN Rail | 24V | 10A | 240W |
| S8VS-24024A-F | DIN Rail | 24V | 10A | 240W |
| S8VS-24024AP | DIN Rail | 24V | 10A | 240W |
| S8VS-24024AP-F | DIN Rail | 24V | 10A | 240W |
| S8VS-24024B | DIN Rail | 24V | 10A | 240W |
| S8VS-24024B-F | DIN Rail | 24V | 10A | 240W |
| S8VS-24024BE | DIN Rail | 24V | 10A | 240W |
| S8VS-24024BE-F | DIN Rail | 24V | 10A | 240W |
| S8VS-24024BP | DIN Rail | 24V | 10A | 240W |
| S8VS-24024BP-F | DIN Rail | 24V | 10A | 240W |
| S8VS-48024 | DIN Rail | 24V | 10A | 480W |
| S8VS-06024 | DIN Rail | 24V | 2.5A | 60W |
| S8VS-06024A | DIN Rail | 24V | 2.5A | 60W |
| S8VS-06024A | DIN Rail | 24V | 2.5A | 60W |
| S8VS-06024A-F | DIN Rail | 24V | 2.5A | 60W |
| S8VS-06024B | DIN Rail | 24V | 2.5A | 60W |
| S8VS-06024B-F | DIN Rail | 24V | 2.5A | 60W |
| S8VS-48024-F | DIN Rail | 24V | 20A | 480W |
| S8VS-48024A | DIN Rail | 24V | 20A | 480W |
| S8VS-48024A-F | DIN Rail | 24V | 20A | 480W |
| S8VS-48024B | DIN Rail | 24V | 20A | 480W |
| S8VS-48024B-F | DIN Rail | 24V | 20A | 480W |
| S8VS-09024 | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024A | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024A-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024AP | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024AP-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024APS | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024APS-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024AS | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024AS-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024B | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024B-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BE | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BE-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BES | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BES-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BP | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BP-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BPS | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BPS-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BS | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024BS-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024S | DIN Rail | 24V | 3.75A | 90W |
| S8VS-09024S-F | DIN Rail | 24V | 3.75A | 90W |
| S8VS-24024 | DIN Rail | 24V | 10A | 240W |
| S8VS-12024 | DIN Rail | 24V | 5A | 120W |
| S8VS-12024-F | DIN Rail | 24V | 5A | 120W |
| S8VS-12024A | DIN Rail | 24V | 5A | 120W |
| S8VS-12024A-F | DIN Rail | 24V | 5A | 120W |
| S8VS-12024AP | DIN Rail | 24V | 5A | 120W |
| S8VS-12024AP-F | DIN Rail | 24V | 5A | 120W |
| S8VS-12024B | DIN Rail | 24V | 5A | 120W |
| S8VS-12024B-F | DIN Rail | 24V | 5A | 120W |
| S8VS-12024BE | DIN Rail | 24V | 5A | 120W |
| S8VS-12024BE-F | DIN Rail | 24V | 5A | 120W |
| S8VS-12024BP | DIN Rail | 24V | 5A | 120W |
| S8VS-12024BP-F | DIN Rail | 24V | 5A | 120W |
| S8VS-18024 | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024-F | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024A | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024A-F | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024AP | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024AP-F | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024B | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024B-F | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024BE | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024BE-F | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024BP | DIN Rail | 24V | 7.5A | 180W |
| S8VS-18024BP-F | DIN Rail | 24V | 7.5A | 180W |
Download tài liệu bộ nguồn Omron S8VS Series
► Catalogue Omron S8VS Series
Kích thước lắp đặt bộ nguồn
